rtabmap::RtabmapColorOcTree Class Reference
Inheritance diagram for rtabmap::RtabmapColorOcTree:
Inheritance graph
[legend]

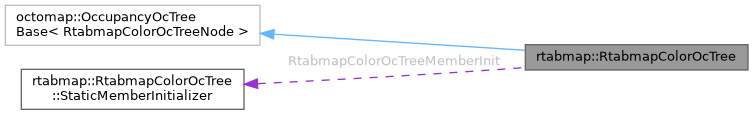

Collaboration diagram for rtabmap::RtabmapColorOcTree:
Collaboration graph
[legend]

Classes

class  StaticMemberInitializer


Public Member Functions

 RtabmapColorOcTree (double resolution)
 Default constructor, sets resolution of leafs.

RtabmapColorOcTree * create () const

std::string getTreeType () const

virtual bool pruneNode (RtabmapColorOcTreeNode *node)

virtual bool isNodeCollapsible (const RtabmapColorOcTreeNode *node) const

RtabmapColorOcTreeNode * setNodeColor (const octomap::OcTreeKey &key, uint8_t r, uint8_t g, uint8_t b)

RtabmapColorOcTreeNode * setNodeColor (float x, float y, float z, uint8_t r, uint8_t g, uint8_t b)

RtabmapColorOcTreeNode * averageNodeColor (const octomap::OcTreeKey &key, uint8_t r, uint8_t g, uint8_t b)

RtabmapColorOcTreeNode * averageNodeColor (float x, float y, float z, uint8_t r, uint8_t g, uint8_t b)

RtabmapColorOcTreeNode * integrateNodeColor (const octomap::OcTreeKey &key, uint8_t r, uint8_t g, uint8_t b)

RtabmapColorOcTreeNode * integrateNodeColor (float x, float y, float z, uint8_t r, uint8_t g, uint8_t b)

void updateInnerOccupancy ()


Protected Member Functions

void updateInnerOccupancyRecurs (RtabmapColorOcTreeNode *node, unsigned int depth)


Static Protected Attributes

static StaticMemberInitializer RtabmapColorOcTreeMemberInit
 static member to ensure static initialization (only once)


Detailed Description

Definition at line 87 of file OctoMap.h.

Constructor & Destructor Documentation

◆ ~RtabmapColorOcTree()

virtual rtabmap::RtabmapColorOcTree::~RtabmapColorOcTree ( )
inlinevirtual

Definition at line 92 of file OctoMap.h.

Member Function Documentation

◆ create()

RtabmapColorOcTree * rtabmap::RtabmapColorOcTree::create ( ) const
inline

virtual constructor: creates a new object of same type (Covariant return type requires an up-to-date compiler)

Definition at line 96 of file OctoMap.h.

◆ getTreeType()

std::string rtabmap::RtabmapColorOcTree::getTreeType ( ) const
inline

Definition at line 98 of file OctoMap.h.

◆ pruneNode()

virtual bool rtabmap::RtabmapColorOcTree::pruneNode ( RtabmapColorOcTreeNode *  node)
virtual

Prunes a node when it is collapsible. This overloaded version only considers the node occupancy for pruning, different colors of child nodes are ignored.

Returns
true if pruning was successful

◆ setNodeColor()

RtabmapColorOcTreeNode * rtabmap::RtabmapColorOcTree::setNodeColor ( float  x,
float  y,
float  z,
uint8_t  r,
uint8_t  g,
uint8_t  b
)
inline

Definition at line 114 of file OctoMap.h.

◆ averageNodeColor()

RtabmapColorOcTreeNode * rtabmap::RtabmapColorOcTree::averageNodeColor ( float  x,
float  y,
float  z,
uint8_t  r,
uint8_t  g,
uint8_t  b
)
inline

Definition at line 126 of file OctoMap.h.

◆ integrateNodeColor()

RtabmapColorOcTreeNode * rtabmap::RtabmapColorOcTree::integrateNodeColor ( float  x,
float  y,
float  z,
uint8_t  r,
uint8_t  g,
uint8_t  b
)
inline

Definition at line 138 of file OctoMap.h.

Member Data Documentation

◆ RtabmapColorOcTreeMemberInit

StaticMemberInitializer rtabmap::RtabmapColorOcTree::RtabmapColorOcTreeMemberInit
staticprotected

static member to ensure static initialization (only once)

Definition at line 171 of file OctoMap.h.

The documentation for this class was generated from the following file:
